Linear Shift with Integrated Tilt (LSMT) Bellows-Sealed Actuator

UHV Design’s LSMT Series

Linear Shift with Integrated Tilt (LSMT) Bellows-Sealed Actuator

The LSMT Series from UHV Design provides a versatile solution, building on the standard LSM series with the added capability to tilt the moving flange by +/- 2°. This unique feature serves as an integrated port aligner, ensuring precise alignment for complex applications.

Customisable for Your Application Needs

Ideal for beamlines and ion/sputter source alignment, the LSMT Series offers a comprehensive solution for demanding environments. Adjustment is achieved via four threaded support shafts, offering smooth kinematic motion. This series is highly configurable and the linear motion can be actuated through a variety of mechanisms including a manual handwheel, pneumatic cylinder, DC motor, or stepper motor, allowing for flexible integration into any system.

Contact us today to discuss how the LSMT Series can enhance your operations.

Robust and Reliable

The LSMT Series is designed for high-vacuum environments, with all components being bakeable to 250ºC. Its demountable bellows assembly ensures easy maintenance and replacement. Additionally, all flanges in the series come with tapped bolt holes on the base flange as standard, ensuring compatibility with existing systems.

Applications

The LSMT Series is an invaluable tool for professionals requiring precision alignment in complex setups, commonly used in:

Beamline alignment: Ensuring accurate diagnostics and optimised results for beamline experiments.

Ion and sputter source alignment: Ideal for fine-tuning ion or sputter sources, which require precise positioning for consistent performance.

● Port alignment: The integrated tilt functionality ensures that flanges can be aligned effortlessly in challenging environments.

Product Benefits

Precise Alignment: The +/- 2° tilt adjustment allows for exact alignment, critical in sensitive applications.

Enhanced Control: Multiple actuation options provide the flexibility needed to adapt to various operational requirements.

● High Durability: Designed for vacuum environments with high-temperature capabilities, ensuring longevity and reliability.

● Seamless Integration: The standard tapped bolt holes ensure easy installation in a wide range of setups.

Key Specifications

  • Stroke length up to 150mm
  • +/- 2° tilt for precise alignment
  • Adjustment via 4 threaded support shafts
  • Smooth kinematic motion for delicate adjustments
  • Bakeable to 250ºC for high-temperature applications
  • Demountable bellows assembly for easy maintenance
  • Customisable actuation: manual handwheel, pneumatic cylinder, DC motor, or stepper motor

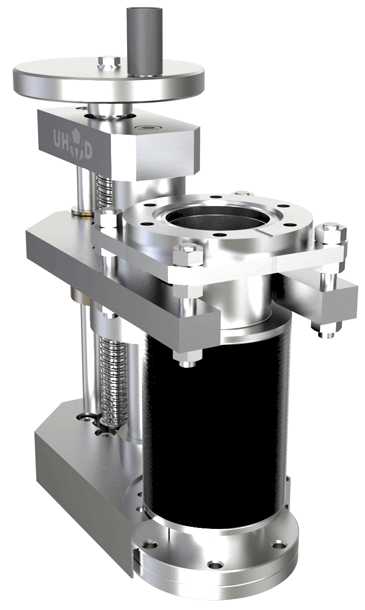

LSMT Linear shift actuator with integrated tilt

Product Downloads

Product configuration tool

If you would like to discuss your project with our engineering team, please contact us.
