Modular Stepper Motor Controller
Precise control for Stepper Motorised Devices
The Multi-Axis Stepper Motor Controller (MASC) is designed to provide precise, flexible control for all UHV Design stepper motorised devices. Compatible with both 4-lead and 8-lead stepper motors, the MASC offers a simple software interface, along with 3rd party software options such as Applied Motion Q and Si Programmer. With the addition of our newly updated hand-held jog box accessory, featuring a touchscreen for intuitive speed control, you can achieve seamless actuation across multiple axes. This controller is ideal for applications that demand precision and system-level integration, including vacuum applications, scientific research, and light industrial use.
Key Specifications
- Microstepping functionality for smoother, precise movement.
- Applied Motion Products driver as an industry-standard motor controller.
- Monitoring and control via RS-485, ensuring real-time system feedback and control.
- Incremental encoder compatibility as standard for enhanced precision and accuracy.
- Configurable touchscreen jog box accessory, enabling speed adjustment and axis selection.
- Store up to four positions per axis for easy recall during complex operations.
- Fully compatible with various third-party software tools for advanced programming needs.
Benefits:
The MASC system is designed for users who require robust motion control in vacuum environments. With options for real-time speed control and position saving, the MASC stepper motor controller simplifies precision tasks, making it the preferred choice for those in scientific research, semiconductor production, and light industrial settings.
MASC Jog Box – Intuitive Motion Control

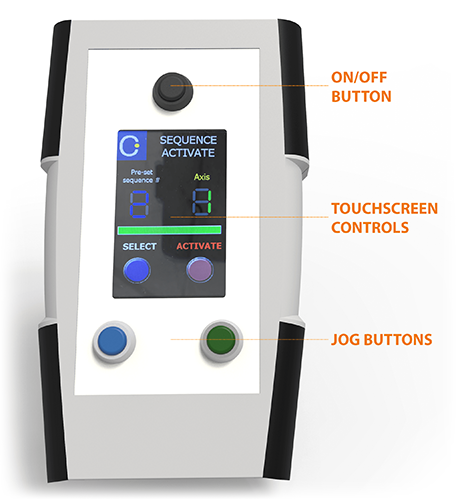

The MASC Jog Box is an accessory designed to work seamlessly with the MASC motor controller, offering easy-to-use push-button controls. Users can manage multiple axes of motion through its central touchscreen interface, allowing for precise control of speed and direction. The Jog Box emulator provides fast, PC-based software operation for streamlined tasks. Save up to four axis positions for repeated use, ensuring a streamlined workflow.
Applications:
- Stepper motor control in vacuum system engineering and scientific research.
- Precision motion systems for laboratory automation and industrial machinery.
- High-precision positioning for semiconductor manufacturing and beamline diagnostics.
Why Choose UHV Design's Stepper Motor Controllers?
Our stepper motor controllers are crafted with precision, reliability, and versatility in mind. Whether you need to integrate the controller into an existing system or require a complete setup, our product range ensures your motion control needs are met with industry-leading technology.
How to store positions
Step 1 | Jog to the position you would like to save
Step 2 | Navigate to Select Axis screen
Step 3 | Press and hold the desired axis until the 'SET SEQUENCE' screen displayed
Step 4 | SELECT the sequence number to save the position against
Step 5 | Press SET to store the position
If you would like to discuss your project with our engineering team, please contact us.
