Magnetically-coupled devices

Magnetically-coupled push pull (MPP) devices are ideally suited for high-duty process applications,. This is because they have high torque, high axial stiffness and zero thrust due to vacuum. The magnetically-coupled push pull range provides linear and linear/rotary motion solutions, with up to 300mm (12") stroke. Strong magnetic coupling eliminates the use of bellows and dynamic seals - often vulnerable to failure. This ensures a robust long-life design.

Key Features

  • Designed for use in high-duty and tigh-torque applications
  • Linear and linear/rotary motion options
  • Stroke lengths from 50mm to 300mm
  • Pnuematic and motorisation options (linear only)
  • No thrust due to vacuum
  • Bakeable to 250oC
Magnetically-coupled devices

How it works

Unlike bellows-sealed devices, this range provides smooth motion in both directions - with zero thrust due to vacuum, Ranges provide linear motion (with free rotation of the shaft), guided linear motion (no rotation of the shaft) and linear and rotary motion (shaft rotation controlled by the thimble). Manual actuation is provided as standard, with motorised and pneumatic options available. Pneumatic actuation is ideal for high-duty, two-position applications, e.g. source or beam shutters.

Magnetically-coupled devices product options

Decorative

MPPL - linear guided motion

Our MPPL series

Decorative

MPP - linear unguided motion

UHV Design’s MPP series

Decorative

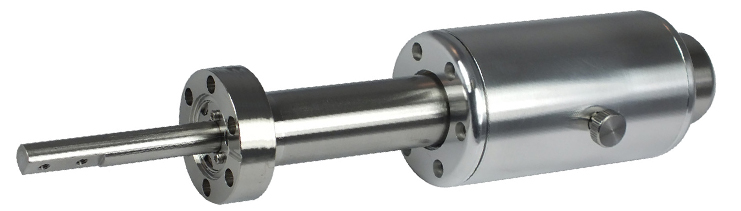

MPPRL - rotary and linear motion

UHV Design’s MPPRL series

If you would like to discuss your project with our engineering team, please contact us.
