Sample Transfer Arms for Ultra-High Vacuum (UHV) Systems

The PowerProbe sample transfer arms are precision-engineered tools designed to facilitate the secure and accurate transfer of samples for a wide range of applications up to ultra-high vacuum (UHV) environments. These sample transfer systems are critical for a wide range of UHV applications, including scientific research, semiconductor fabrication, and vacuum deposition processes. Featuring an unrivalled magnetic coupling mechanism, the PowerProbe range ensures reliable, leak-tight performance even under the most demanding UHV conditions.

The PowerProbe range includes linear transfer arms, linear/rotary probes, and specialised models like the Elevating PowerProbe and Dual-Axis PowerProbe. These products are designed to accommodate various industry-standard sample holders, providing compatibility across multiple vacuum system configurations. The flexibility of these sample transfer arms allows for their use in critical high-precision environments, such as beamline experiments, UHV chambers, and sputter deposition systems.

Key Applications:

  • Precision movement of industry-standard sample holders for exact positioning
  • Ideal for use in UHV scientific laboratories, semiconductor fabrication, and vacuum deposition processes
  • Optimised for beamline filters, sputter sources, and other critical UHV operations

Key Features

  • Secure transfer of samples in UHV systems with magnetic coupling technology
  • Magnetic coupling ensures robust sample transfer and eliminates the need for bellows or dynamic seals, improving reliability in UHV systems
  • Unmatched thrust performance with a 4 Nm (3 lbf ft) break-away torque for secure handling of vacuum-sealed samples
  • Angular rigidity and stiff coupling provide superior control and stability during the transfer of UHV samples
  • Secure transfer of samples in UHV systems with magnetic coupling technology without needing external guides
  • Fully bakeable to 250°C, ensuring optimal performance in high-temperature UHV processes
  • Available in multiple configurations, including linear, linear/rotary, elevating, and dual-axis designs for enhanced versatility
  • Compatible with various actuation methods, allowing for seamless integration with existing UHV equipment

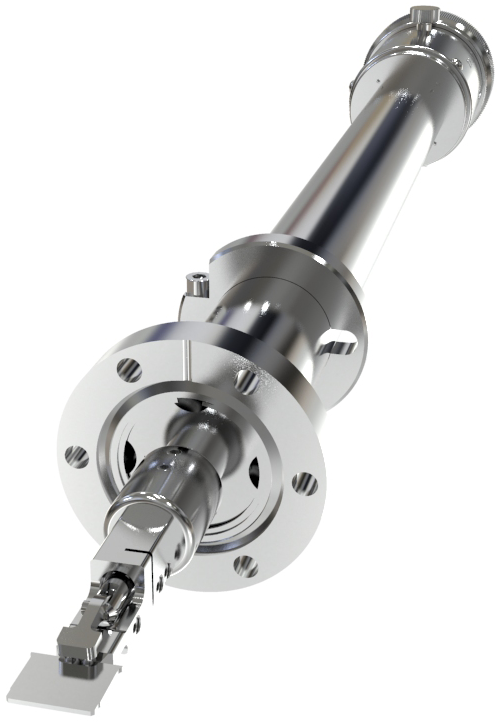

Magnetic transfer arm for the transferring of samples in UHV.

Customisation Options:

The PowerProbe sample transfer arms offer a high degree of customisation to meet specific UHV operational requirements. Additional configurations, such as motorised actuation, high-speed motion, and custom shaft designs, are available to ensure that these sample transfer arms can be tailored for the most complex vacuum environments. Whether you are conducting high-precision research or managing UHV production processes, the PowerProbe range delivers unparalleled functionality, precision, and durability.

Sample Transfer Arms for Ultra-High Vacuum (UHV) Systems series and product options

Linear transfer arm

The LPP, XLPP & SLPP range

Linear & rotary magnetically-coupled transfer arm

The PP, XPP and SPP range

Linear transfer arm with rotating inner shaft

The DAPP, XDAPP & SDAPP range

Linear magnetically-coupled transfer arm with elevating platform

The EPP, XEPP and SEPP range

Magnetically-coupled triple axis transfer arm

Linear and rotary motion with a unique sample gripping mechanism

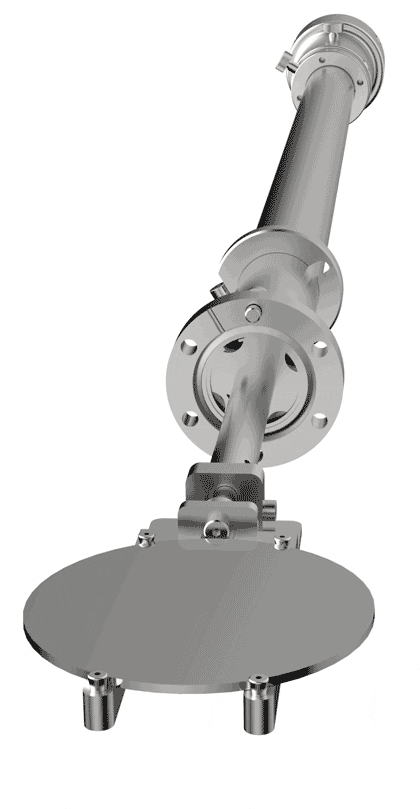

Wafer flipper

Transfer with 180-degree orientation

XPP Option

Designed for UHV and XHV applications

SPP Option

Designed for higher load applications

Flag Sample Transfer Options

Securely transferring standard flag sample holders

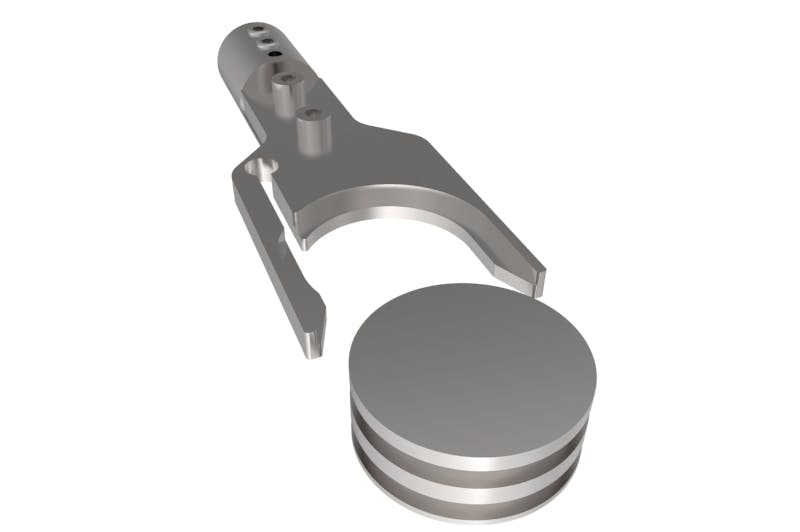

Puck sample transfer options

Securely transferring standard puck sample holders

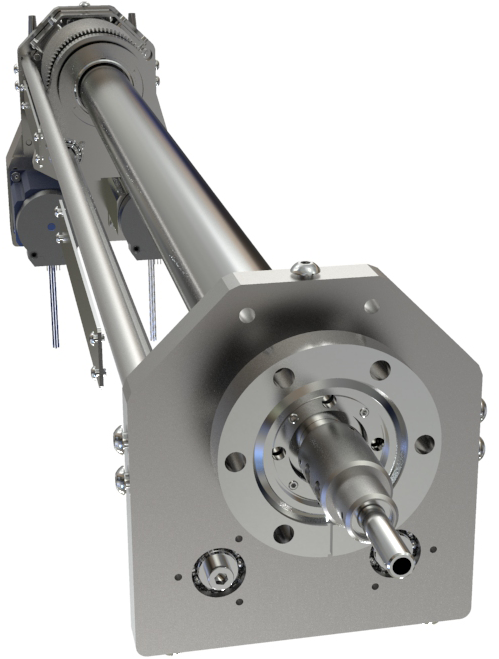

Power Probe customisation options

Actuation methods, encoders and custom features

Linear Telescopic Transfer Arm

Telescoping transfer arm with up to 914mm travel

If you would like to discuss your project with our engineering team, please contact us.
