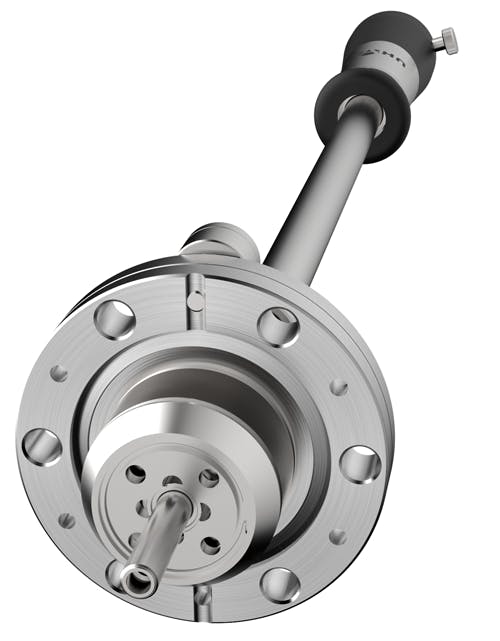

XWS40 UHV Wobble Stick Range

The XWS40 range of wobble sticks is tailor-made for precise, manual manipulation of a variety of sample holders. To do so, it utilises UHV Design's high power magnetic coupling technology. And by using only ceramic and metal parts, it offers exceptionally low outgassing.

The slimline modular design provides in-line and right-angle variants - along with a choice of end-effectors for Flag, Puck and ESCA stub style sample holders. As standard, the XWS40 includes an integrated brake thumbscrew.

The XWS40 includes the 'Flag in-line toggle' option, allowing secure transfer of flag style sample holders via a innovative 'twist & lock' mechanism. This prevents accidental damage to the flag sample handle.

Key Specifications

  • In-line and right-angled version with +/-22° tilt
  • 100-350mm stroke range (50mm increments) - Note: longer strokes are available upon request. Contact us for details.
  • Bakeout to 250°C without the need to remove the outer magnet assembly
  • Choice of end effectors for flag, puck and esca stub (see below)
  • No thrust due to vacuum
XWS40 Range

Product Downloads

Flag toggle end-effector option

Incorporates an integrated mechanism that prevents accidental damage to the flag sample handle if the wobble stick is over rotated.

null

Puck end-effector

Compatible with standard puck sample holders and available for customisation for non-standard sample holders.

null

ESCA stub end-effector

Compatible with standard ESCA sample holders and available for customisation for non-standard sample holders.

null

Screw driver end-effectors

We offer a a range of screwdriver style end-effectors including blades, allen keys, pozi etc. We can also offer customised designs where required.

null

null

Wobble lock option

The wobble lock allows the wobble stick to be locked in the centre-line position to allow for linear only actuation.

null

Product configuration tool

Updated wobble stick toggle design

Wobble lock and thimble brake

If you would like to discuss your project with our engineering team, please contact us.
