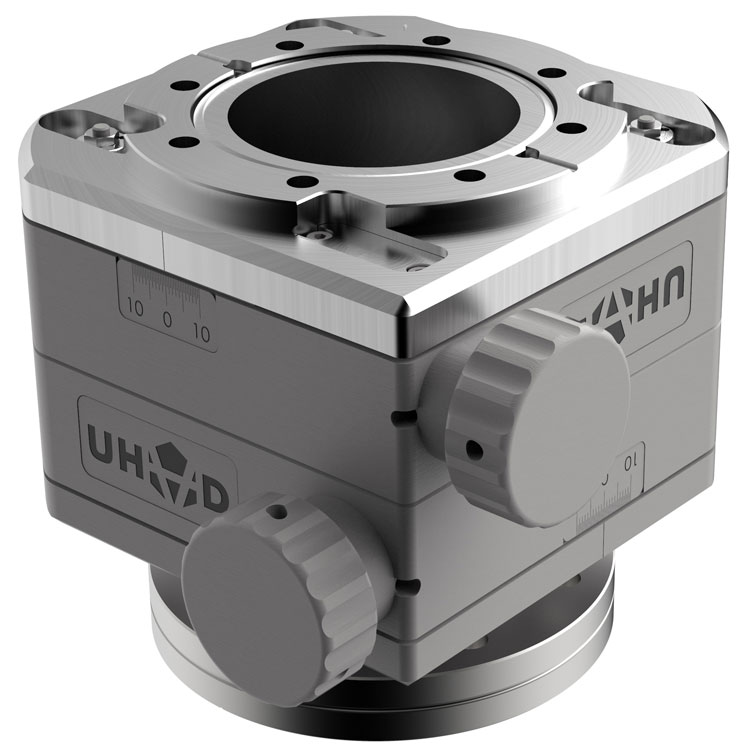

XY Aligner (XYA)

Basic X & Y manipulation for low duty-cycle applications

The XYA provides basic X & Y manipulation for low duty-cycle applications where high precision isn’t required. It’s available in CF40 (2.75" OD), CF63 (4.5" OD) and CF100 (6" OD) mounting flange options with clear bores of 38mm and 65mm respectively. All options provide +/-10mm of X & Y motion with typical repeatability of 0.5mm (based on mid-position between 1mm increments).

Key Specifications

  • CF40 (2.75" OD), CF64 (4.5" OD), CF100 (6" OD) mounting options
  • CF40 mounting flange option provides 38mm clear bore
  • CF64 & CF100 mounting flange options provide 65mm clear bore
  • XY Stroke +/-10mm with 0.5mm repeatability
  • Max applied load in vertical axis: 100 N
  • Max applied load in horizontal axis: 10 Nm
XY Aligner (XYA)

Product Downloads

XYA40 Specifications

Travelling flange: CF40 (2.75” OD) tapped holes

  • Clear bore: 38mm
  • XY stroke: +/-10mm
  • Typical repeatability: 0.5mm (based on mid-position between 1mm increments)
  • Max applied load in vertical axis: 100 N
  • Max applied load in horizontal axis: 10 Nm
  • Suitable for transfer arms up to 609mm stroke
  • Bakeout to 250°C
  • Fully adjustable mounting orientation

Mounting flange options and part numbers

  • CF40 (2.75”OD) clear holes – Part Number XYA40-40-H
  • CF63 (4.5”OD) clear holes – Part Number XYA40-63-H

XYA63 Specifications

Travelling flange: CF63 (4.5” OD) tapped holes

  • Clear bore: 65mm
  • XY stroke: +/-10mm
  • Typical repeatability: 0.5mm (based on mid-position between 1mm increments)
  • Max applied load in vertical axis: 100 N
  • Max applied load in horizontal axis: 10 Nm
  • Suitable for transfer arms up to 914mm stroke
  • Bakeout to 250°C
  • Fully adjustable mounting orientation

Mounting flange options and part numbers

  • CF63 (4.5” OD) clear holes – Part Number XYA63-63-H
  • CF100 (6.0”OD) clear holes – Part Number XYA63-100-H

If you would like to discuss your project with our engineering team, please contact us.
