Flag Sample Transfer Options

Securely transferring standard flag sample holders

These products are designed to securely transfer standard flag sample holders. To do so, they use our Linear&Rotary (PP), Dual Axis (DAPP) and Triple Axis (TAPP) Power Probe ranges.

Key Specifications

  • Secure sample transfer for flag style sample holders
  • Available for Linear & Rotary, Dual Axis and Triple Axis Power Probes
Flag Sample Transfer Options

Product Downloads

PP range

null

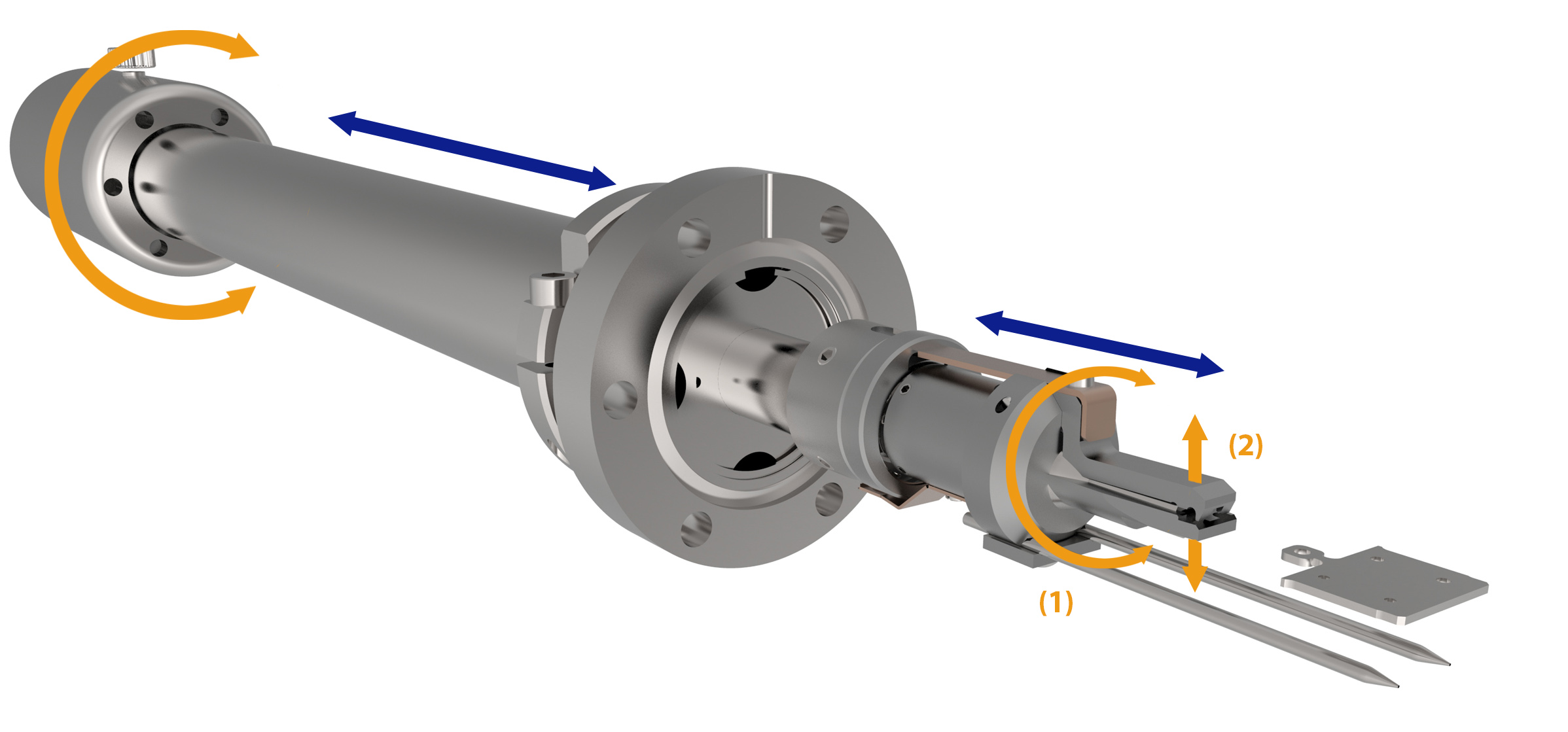

Flag style sample transfer with linear & rotary (1) movement incorporating flag gripper mechanism (2)  activated by rotating when the front pins are constrained.

null

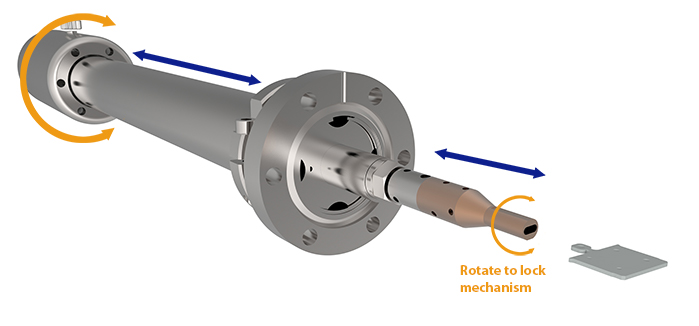

Flag style sample transfer with linear & rotary movement incorporating flag toggle mechanism that is activated by rotating the shaft to lock and unlock.

DAPP range

null

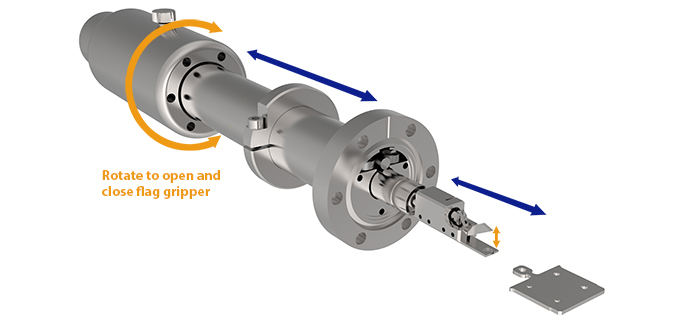

Flag style sample transfer with linear only movement incorporating flag gripper  that is activated by rotating the thimble.

TAPP range

null

Flag style sample transfer with linear & rotary movement incorporating flag gripper locking mechanism that is activated by rotating the locking ring to lock and unlock.

If you would like to discuss your project with our engineering team, please contact us.
