SPP Option
Designed for higher load applications
The Power Probe range of sample transfer arms provides ultra-reliable, service-free operation in most common sample transfer applications.
Where the transfer or movement of higher loads is required, the SPP option can be selected. It incorporates an increased torque and axial magnetic coupling, larger diameter output shaft, and every internal component scaled up to deliver the increased performance.
Key Specifications
- CF63 (4 1/2" OD) mounting flange with clear holes
- 180N axial coupling strength with 16Nm torque
- 50Nm maximum cantilevered load.
- Bakeable to 200°C without having to remove the outer magnets
- Available in Linear Only, Linear & Rotary, Dual Axes and Elevating Platform variants
Product Downloads
- SPP63 technical datasheet (Linear & Rotary)PDF (832kb)
- SLPP63 technical datasheet (Linear only)PDF (471kb)
- SDAPP63 technical datasheet (Linear with Inner Rotating shaft)PDF (491kb)
- SEPP63 technical datasheet (Elevating)PDF (441kb)
Power Probe (PP range)
PP40 with a CF40 mounting flange and 15.99mm diameter output shaft.
SPower Probe Option

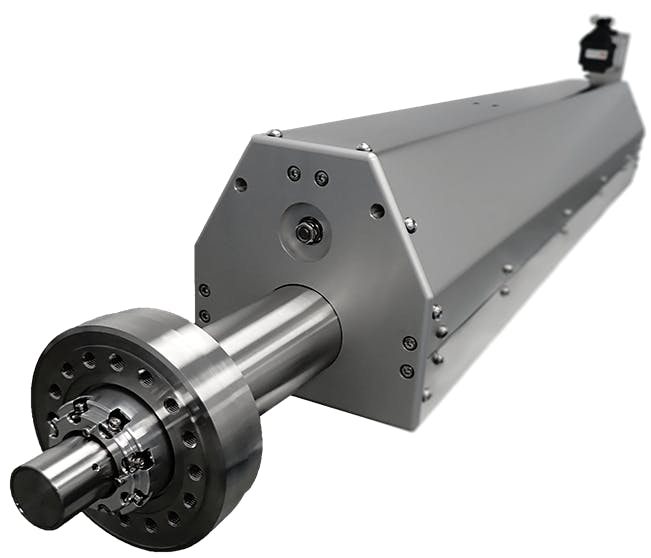

SPP incorporates a CF63 mounting flange. The larger nose bearing configuration can be seen at the front end, supporting the 31.7mm diameter output shaft.
If you would like to discuss your project with our engineering team, please contact us.
